Gigabyte BRIX GB-BRi3H-10110 (rev. 1.0) UCFF I3-10110U (2C/4T) 0GB No-OS tietokonerunko - barebone

• High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
• Features Intel® Core™ i3-10110U Processors
• Dual SO-DIMM DDR4 supports up to 2666MHz, 64GB
• Support 1x M.2 SSD (2280) and 2.5" SATA HDD/SSD
• Dual HDMI™ supports resolutions up to 4K/60P
• Intel® Wireless-AC 3168, dual band WiFi & Bluetooth 4.2
• Massive I/O ports, included 6 USB 3.2 Gen2, Gigabit LAN, RS232 Com Port
• Supports Add-On Cards upgrade kit for 2nd LAN and 2nd RS 232 COM port
• VESA Mount bracket (75 x75 mm, 100 x 100 mm)

* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.

• Dimension

  46.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")

• Motherboard Size

  105mm x 112.4mm

• CPU

  10th Generation Intel® Core™ i3 Processor
  i3-10110U 4.1GHz, 2 core (TDP 15W)

• Memory

  2 x SO-DIMM DDR4 slot
  2666MHz
  Max. 64GB

• LAN

  Gigabit LAN (Intel i219v)

• Wifi Card

  Intel® Dual Band Wireless-AC 3168

• Graphics

  Intel® UHD Graphics 620

• Audio

  Realtek ALC255

• HDMI Resolution (Max.)

  HDMI 2.0 : 4K (3840×2160) @ 60 Hz

• Storage

  Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
  1 x M.2 SSD (2280) slot support PCI-e x4 /SATA

• Expansion Slots

  1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

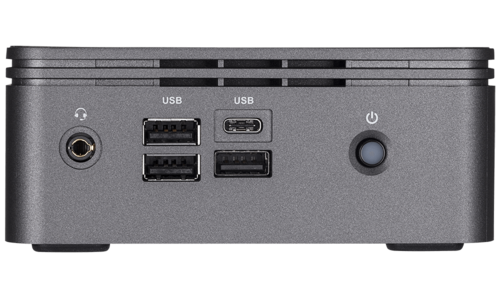

• Front I/O

  3 x USB 3.2 Gen 2
  1 x USB 3.2 Gen 2 Type C
  1 x Headphone / Mic Jack
  1 x Power Button

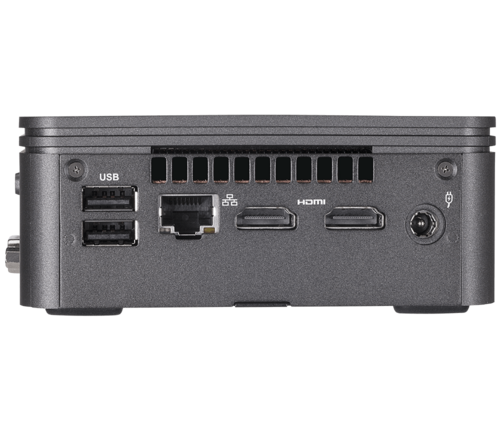

• Rear I/O

  2 x HDMI 2.0
  2 x USB 3.2 Gen 2
  1 x RJ45
  1 x DC-In

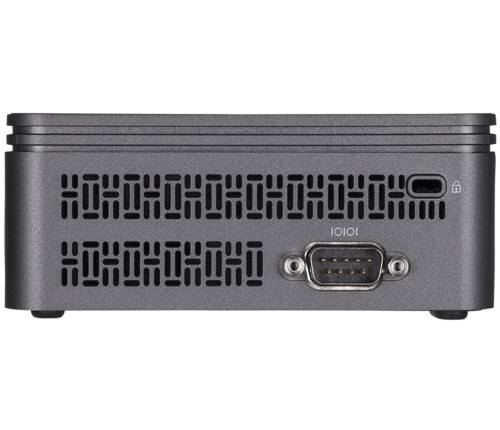

• Side I/O

  1 x Kensington lock slot
  1 x RS232 COM Port

• Power Supply

  Input: AC 100-240V
  Output: DC 19V
  4.74A

• VESA

  Bracket included
  Supports 75 x 75 and 100 x 100 mm

• Support OS

  Windows 10

• Environment

  System Environment Operating Temperature: 0°C to +35°C
  System Storage Temperature: -20°C to +60°C

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
