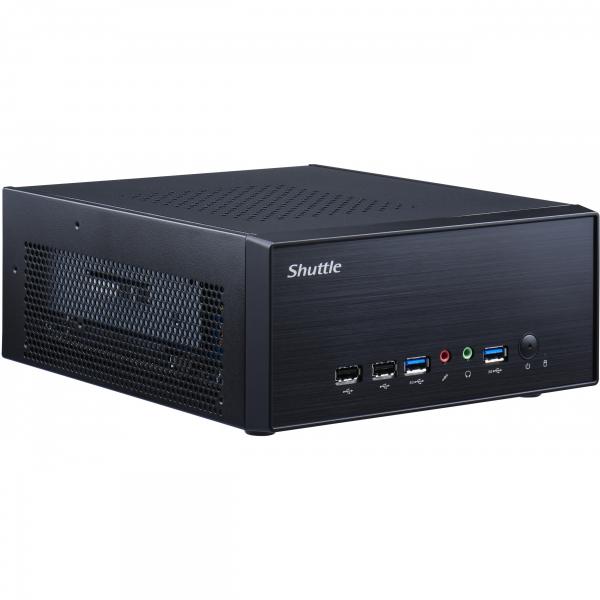

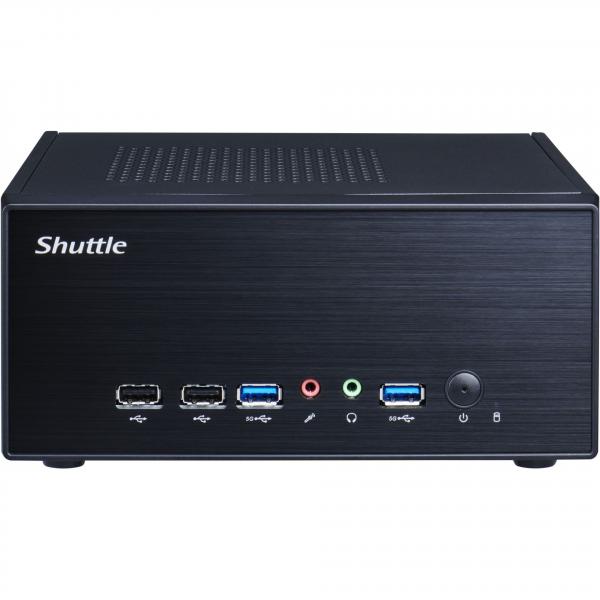

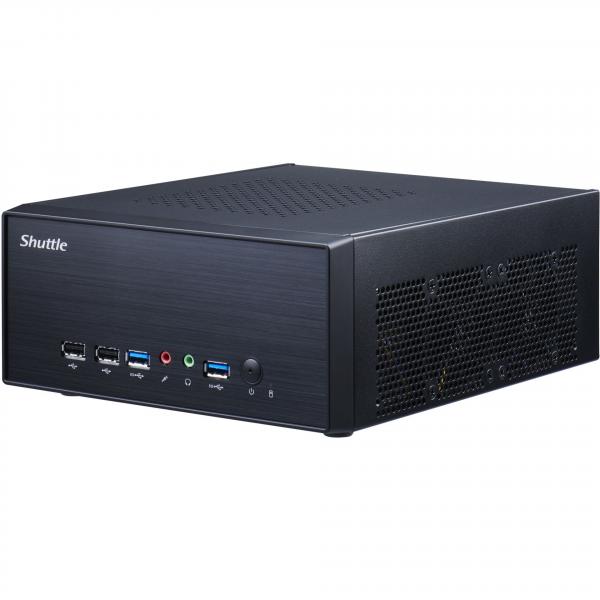

Shuttle XH610G2 barebone XPC slim XH610G2 LGA1700 2xSODIMM DDR5 2xM.2 2xHDMI 1xDP tietokonerunko - barebone

Specs
No Built-in processor
Memory
Memory slots type SO-DIMM
Number of memory slots    2
Maximum internal memory
The maximum internal memory which is available in the product.
64 GB
Supported memory clock speeds
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
5600 MHz
Supported memory types
Types of memory which can be used with the product.
DDR5-SDRAM
Memory channels    Dual-channel
Memory voltage
The voltage (V) of the memory in the device.
1.1 V
Non-ECC
Storage
Supported storage drive types
The type of storage drives the device is compatible with.
HDD & SSD
Storage drive sizes supported
The sizes of storage drives that can be used with the product.
2.5, M.2
Storage drive interface
Where the storage device links with other parts of the product, or an external device.
PCI Express, Serial ATA III
NVMe
NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Graphics
On-board graphics card
Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
LAN controller    Intel® I219-LM, Intel I226-LM
Ports & interfaces
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity    4
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
HDMI version    2.0b
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
DisplayPort version    1.4
Microphone in
The socket where a microphone is connected to the device.
Headphone outputs
Number of sockets /ports where headphones are connected.
1
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Design
Chassis type
The type of rigid framework onto which is the hosuing for device components.
Desktop
Product colour
The colour e.g. red, blue, green, black, white.
Black
Cooling type
The method used to cool the device or to cool the air around the device.
Active
On/off switch
The button which is pressed to switch the device on or off.
LED indicators
Design
Product type
The sub-category of the product.
PC barebone
Performance
Motherboard chipset
The chipset connects the microprocessor to the rest of the motherboard.
Intel H610
Processor socket
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1700
Number of processors supported
The quantity of processors which can be used by the product.
1
BIOS type
The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.
UEFI AMI
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version    2.0
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 channels
Audio chip    Realtek ALC888S
Technical details
Compliance certificates    BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus
Logistics data
Harmonized System (HS) code    84733080
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 11
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Sustainability
Sustainability certificates    ENERGY STAR, ErP
Power
Power supply type
The type of power supply which this product uses.
External AC adapter
Power supply
The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
180 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency    50/60 Hz
AC adapter output voltage    19.5 V
AC adapter output current    9.23 A
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Operating relative humidity (H-H)    10 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
250 mm
Depth
The distance from the front to the back of something.
200 mm
Height
The measurement of the product from head to foot or from base to top.
95 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2.98 kg
Package weight
Weight of the packaged product.
3.49 kg
Packaging content
Power cord included
AC adapter included
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Drivers included
Other features
Country of origin
Country where the device is made. Aka Country of manufacture (COM).
China
