Fractal Design Ion SFX 500W Gold - Modulaarinen SFX-L virtalähde sfx virtalähde

Specifications

• 80PLUS® Certification

  Gold

• Modular cables

  Fully modular

• Fan type

  Slim (15 mm) FDB bearing 120 mm fan

• Maximum operating temperature (full load)

  40°C - Maximum 80% load at 50°C

• Semi-passive operation

  Yes (Zero RPM)

• Capacitors

  105°C Japanese Polymer

• Life expectancy (MTBF) at max output load

  100,000 hours

• PSU form factor

  SFX-L

• Cable type

  Modular 24-pin: Braided sleeve UltraFlex™ wire - Others: Flat UltraFlex™ wire

• PSU Color

  Black/Gunmetal

• Cable Color

  Black

• Protection features

  Over voltage protection - Under voltage protection - Over power protection - Short circuit protection - Over current protection - Over temperature protection

• Input voltage

  100-240V AC

• Input frequency

  50-60 Hz

• Input current

  6A/3A (500G)

• Number of 12V rails

  1

• Standby efficiency

  ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)

• Sleep State Compliance

  C6/C7

• Approvals & Certifications

  CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE

• Warranty

  10 Years

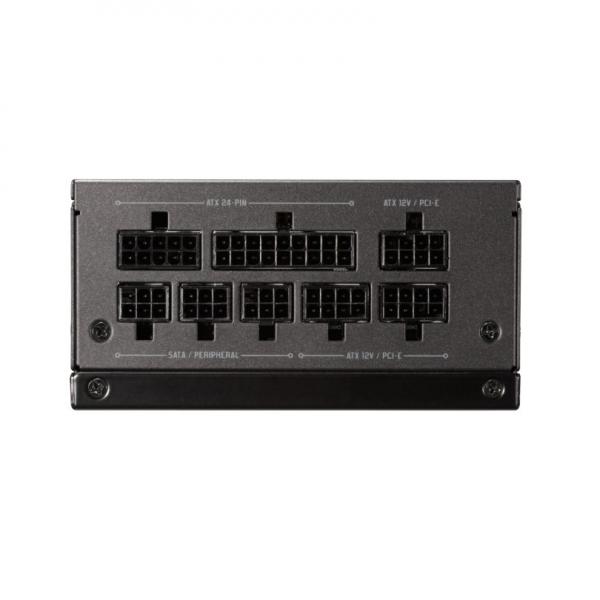

Connectors

• ATX

  1

• EPS/ATX12V

  1

• PCIe

  2

• SATA

  4

• Peripheral

  2

Cable Configuration (length in mm between connectors)

• ATX 24-pin

  350

• EPS/ATX12V 4+4 pin

  400

• PCIe 6+2 pin

  400+100

• SATA

  300+200+200+100

• Peripheral

  300+200

DC Output

• 3.3V

  20A

• 5V

  20A

• 3.3V and 5V combined

  100W

• 12V

  41A

• -12V

  0.3A

• +5Vsb

  3A

• Total Power

  500W

Other

• Package contents

  • Ion SFX-L PSU with protective bag • Modular cables in a convenient storage bag • Screw pack with Velcro cable ties • SFX-to-ATX bracket • AC power cord (localized) • User manual

• Unit dimensions (LxWxH)

  125 x 125 x 63.5 mm

• Net weight (unit only)

  1.11 kg

• Package dimensions (LxWxH)

  260 x 170 x 95 mm

• Package weight

  1.91 kg

• EAN

  7340172702016

• UPC

  843276102012

• Product code

  FD-PSU-ION-SFX-500G-BK
