Neovo 17 SX-17G VGA/DVI/DP/HDMI valvomonäyttö
- Valmistajan koodi : NEO#SX-17G
- EAN : 4710739595864
570,60 €
Leasing/vuokraus:19,72 €/kk ALV 0%, kun sopimusaika on 36 kk.
Tuotteen kuvaus
- Valmistajan koodi : NEO#SX-17G
- EAN : 4710739595864
- Tuotteen nimi : Neovo 17 SX-17G VGA/DVI/DP/HDMI valvomonäyttö

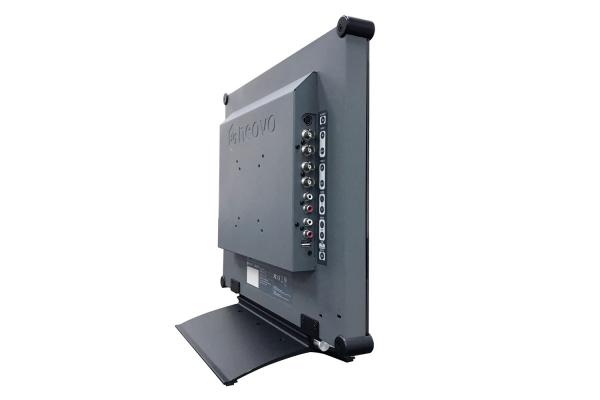

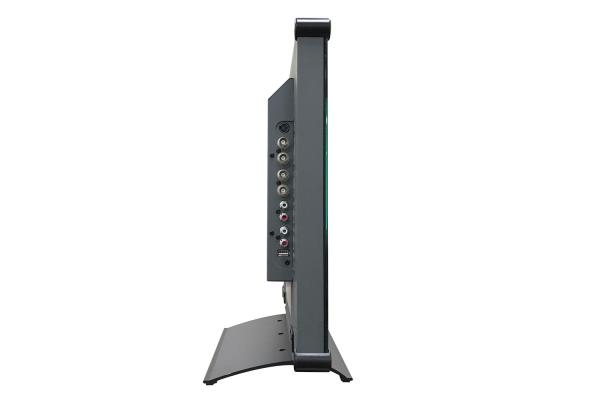

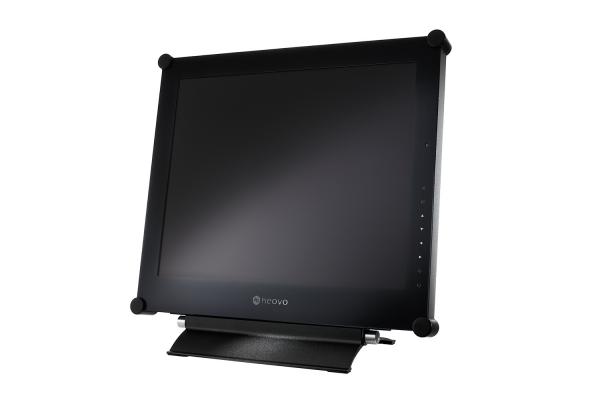

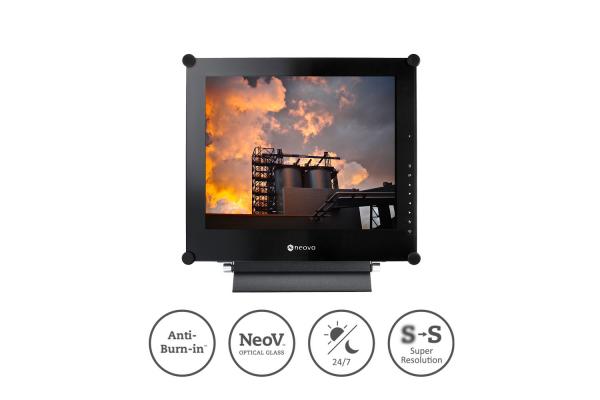

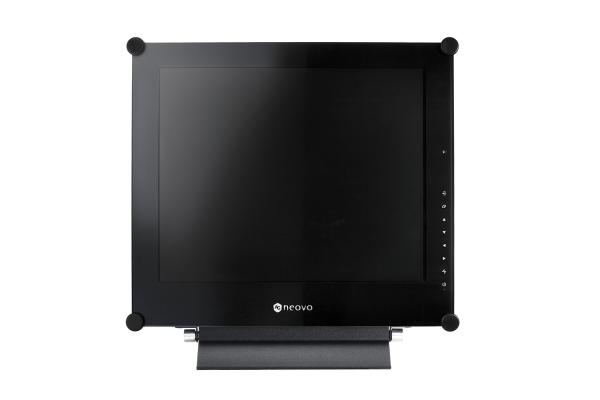

AG Neovo SX-17G 17? LCD Monitor 1280x1024 Pixel, SXGA valvontanäyttö jatkuvaan 24/7-käyttöön.
Tuotteen tekniset tiedot
Ideal for legacy and modern surveillance applications, the SX-Series is equipped with analogue and digital connectivity as well as Composite output for video looping. Built to last and perform in 24/7 operations, it features AG Neovo’s Anti-Burn-in™ technology, preventing image ghosting and ensuring professionals view the present, not the past. Coupled with NeoV™ Optical Glass and metal casing, the display is shielded from incidental damage and impact to withstand the most demanding environments. Highly versatile and compatible, the SX-Series is the optimal display solution for seamless video surveillance transition.
Industry-leading Reliability
The SX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-in™ technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoV™ Optical Glass not only protect the SX-Series from damage but also keep maintenance easy.
Optimised for Surveillance and Security
Built with cutting-edge super-resolution technology, the SX-Series can upscale images at a higher and more detailed resolution for better clearness. Besides, geared specifically for a surveillance control room, a user-friendly CCTV mode is pre-configured to maximise image clarity in the scenario of low light surveillance footage at night.
Highly Versatile and Compatible
The SX-Series supports multiple video input sources, from legacy video cameras to the latest HDMI and DisplayPort equipment. Its lockable Composite input and loop through Composite output make it easy to connect to other gear without the need for a splitter.
| Panel | Panel Type: | LED-Backlit TFT LCD (TN Technology) |
| Panel Size: | 17.0" | |
| Max. Resolution: | SXGA 1280 x 1024 | |
| Pixel Pitch: | 0.264 mm | |
| Brightness: | 250 cd/m² | |
| Contrast Ratio: | 20,000,000:1 (DCR) | |
| Viewing Angle (H/V): | 170°/160° | |
| Display Colour: | 16.7M | |
| Response Time: | 3 ms | |
| Frequency | Frequency (H): | 24 kHz-83 kHz |
| Frequency (V): | 50 Hz-75 Hz | |
| Signal Input | DisplayPort: | x 1 |
| HDMI: | 1.4 x 1 | |
| DVI: | 24-Pin DVI-D | |
| VGA: | 15-Pin D-Sub x 1 | |
| Composite: | BNC x 2 | |
| S-Video: | 4-Pin mini DIN x 1 | |
| Signal Output | Composite: | BNC x 2 |
| External Control | RS232 In: | 2.5 mm Phone Jack |
| Other Connectivity | USB: | 2.0 x 1 (Service Port) |
| Audio | Audio In: | Stereo Audio Jack (3.5 mm), Stereo Audio Jack (RCA) |
| Audio Out: | Stereo Audio Jack (RCA) | |
| Internal Speakers: | 2W x 2 | |
| Power Supply: | External | |
| Power Requirements: | DC 12V, 1.58A | |
| On Mode: | 17W (On) | |
| Stand-by Mode: | < 0.5W | |
| Off Mode: | < 0.5W | |
| Thickness: | 3.0 mm (0.12") | |
| Reflection Rate: | < 1% | |
| Transmission Rate: | > 97% | |
| Hardness: | > 9H | |
| Operating Conditions | Temperature: | 0°C-40°C (32°F-104°F) |
| Humidity: | 10%-90% (non-condensing) | |
| Storage Conditions | Temperature: | -20°C-60°C (-4°F-140°F) |
| Humidity: | 5%-95% (non-condensing) | |
| Mounting | VESA FPMPMI: | Yes (100 x 100 mm & 75 x 75 mm) |
| Stand | Tilt: | 0° to 22° |
| Security | Kensington Security Slot: | Yes |
| Dimensions | Product with Base (W x H x D): | 409.4 x 398.2 x 175.0 mm (16.1" x 15.7" x 6.9") |
| Product w/o Base (W x H x D): | 409.4 x 361.9 x 64.5 mm (16.1" x 14.2" x 2.5") | |
| Packaging (W x H x D): | 506.0 x 506.0 x 225.0 mm (19.9" x 19.9" x 8.9") | |
| Weight | Product w/o Base: | 5.3 kg(11.7 lb) |
| Product with Base: | 6.1 kg( 13.4 lb) | |
| Packaging: | 7.3kg( 16.1 lb) | |
| Regulation Approval | Certifications & Compliance: | BSMI,CB, CE, FCC, RoHS, WEEE, REACH |
| Accessories | Supplied: | Power Adaptor, Power Cord, VGA Cable, Audio Cable, Quick Start Guide, Warranty Card |
