TELTONIKA 5G COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
- Valmistajan koodi : PR1KC640
- EAN : 4779051841394
137,80 €
Leasing/vuokraus:4,76 €/kk ALV 0%, kun sopimusaika on 36 kk.
Tuotteen kuvaus
- Valmistajan koodi : PR1KC640
- EAN : 4779051841394
- Tuotteen nimi : TELTONIKA 5G COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
Tuotteen tekniset tiedot
5G MOBILE MIMO ANTENNA
-
Frequency Range
617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
-
Polarization
Linear
-
Gain
4.0 dBi
-
V.S.W.R
≤3.0
-
Impedance
50 Ω
-
Connector type and count
4x SMA Male
GNSS ANTENNA
-
Frequency range
1164 - 1300 / 1559 - 1610 MHz
-
Polarization
RHCP
-
Supply voltage
3 - 12 VDC
-
LNA Gain
40 ± 2 dB
-
V.S.W.R
≤2.0
-
Impedance
50 Ω
-
Current Consumption
≤60 mA
-
Connector type and count
SMA Male
WIFI MIMO ANTENNA
-
Frequency range
2400 - 2483.5 / 4900 - 5925 MHz
-
Polarization
Linear
-
Gain
4.0 dBi
-
V.S.W.R
≤2.5
-
Impedance
50 Ω
-
Connector type and count
2x RP SMA Male
MECHANICAL/ENVIRONMENTAL
-
Mounting method
Screw
-
Radome ingress projection rating
IP67 (exclude cable outlet)
-
Radome material
UV-Resistant ABS/PC
-
Weight
960 ± 30 g
-
Housing dimensions
189 x 182 x 85 mm
-

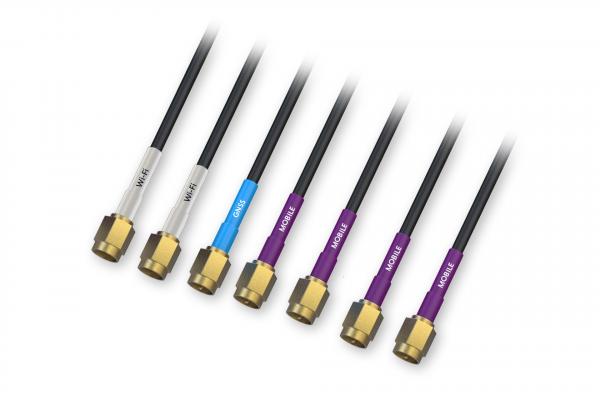

Cable
7 x LMR100, 3000 mm
-
Recomended mounting dimensions
Hole ø28 mm, panel thickness MAX 8 mm
-
Operating temperature
-40 °C - +85 °C
-
RoHS Compliant
✓
