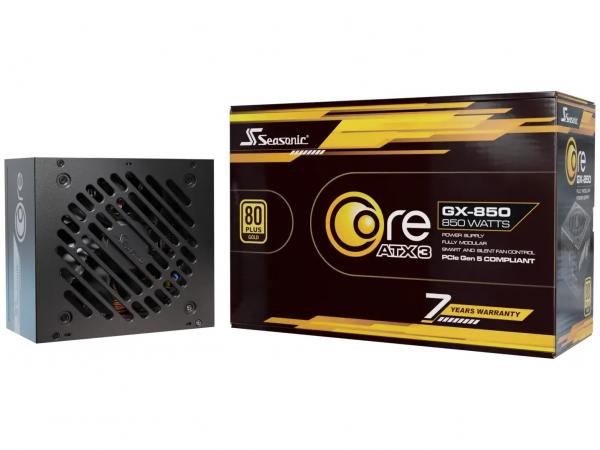

Seasonic Core GX 850 Watt ATX 3.1 80+ GOLD PCIe 5.1 Fully Modular
- Valmistajan koodi : SRP-CGX851-A5A32SF
- EAN : 4711173878476
160,00 €
Leasing/vuokraus:5,53 €/kk ALV 0%, kun sopimusaika on 36 kk.
Tuotteen kuvaus
- Valmistajan koodi : SRP-CGX851-A5A32SF
- EAN : 4711173878476
- Tuotteen nimi : Seasonic Core GX 850 Watt ATX 3.1 80+ GOLD PCIe 5.1 Fully Modular

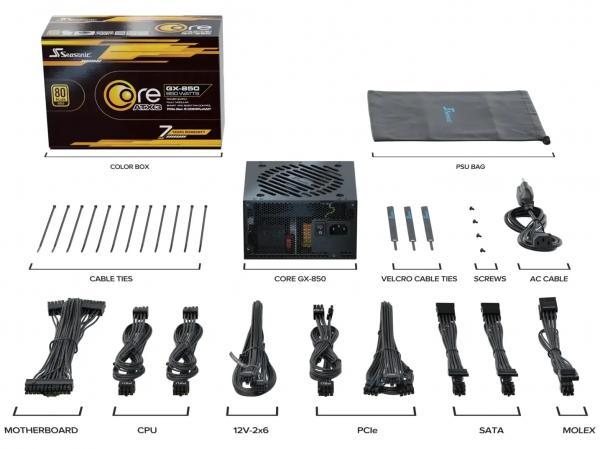

ATX12V 3.1, 80 plus Gold, 120mm tuuletin fluid dynamic laakeri, aktiivinen PFC, kaapelit: 3 x 8 (6+2) pins että näytönohjaimet / 1 x 12V-2x6 pins että näytönohjaimet (PCI Express 5.1 ready) / 6 x 5 pins SATA / 3 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, täysinmodulaarinen
Päivitetty Seasonic CORE GX ATX3 -sarja on uusimpien ATX 3.1- ja PCIe 5.1 -standardien mukainen. Nämä virtalähteet sopivat laajalle PC-harrastajille ja järjestelmien rakentajille, ja ne tarjoavat hyvän tasapainon kustannusten ja suorituskyvyn välillä.80 PLUS®Gold -sertifioitu Seasonicin Core GX -sarja on täysin modulaarinen rakenne, joka on varustettu mustilla kaapeleilla, joissa on punottu kuvio. Nämä virtalähteet sopivat hyvin monenlaisiin sovelluksiin, joissa 120 mm:n Hydro Dynamic Bearing -tuuletin on yhdistetty Seasonicin älykkääseen ja hiljaiseen tuulettimen ohjaukseen optimaalisen jäähdytystehon takaamiseksi mahdollisimman alhaisella melutasolla. Näillä laadukkailla virtalähteillä on Sea Sonicin 7 vuoden maailmanlaajuinen valmistajan takuu.
Tuotteen tekniset tiedot
ATX 3.1 and 16-Pin PCIe Gen 5 Cable (12V-2x6)
Seasonic’s latest CORE GX ATX 3 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.

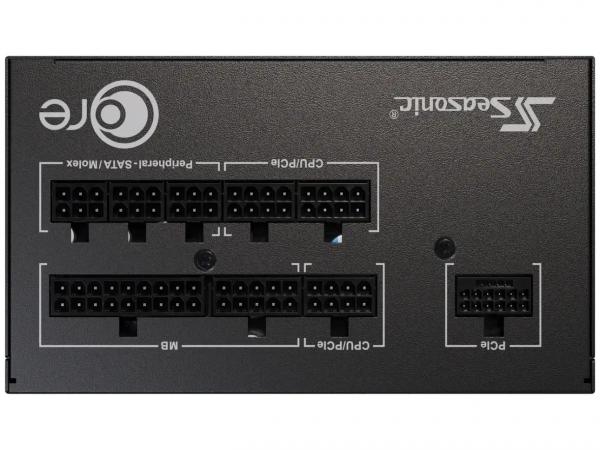

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.
New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.
The eightfold increase in heat dissipation keeps the internals of the power supply cooler, eventually leading to improved product quality, long-term reliability, and more efficient operation.
The redesigned layout of the power supply components and its improved thermal performance creates versatility and allows the power supply to be safely installed in any orientation.
The OptiSink design is an eco-friendly solution that not only lowers the costs of material usage and production but also leads to energy savings in the long run.
Smart And Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Hydro Dynamic Bearing | |
| Life Expectancy | 25,000 hours at 40 °C, 15 % — 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OCP, OPP, OTP, OVP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 7 Years | |
Recommended 12V-2×6 Cable Installation
- BOTH 12V-2×6 connectors of your 12V-2x6 cable must always be plugged into your power supply, ensuring they are FULLY INSERTED, CLICKED-LOCKED, and TIGHT.
- DO NOT bend or apply force to the cable after it is plugged into place.
